I had a bout of builder’s block with the Steel Steed, and found myself forced to think and work on other projects in order to clear my mind and, perhaps, build my confidence.  I faced challenging days ahead, as the non-existent tail section of the Steed begged to be forged into reality.  I felt a lack of skill, and the design I had once clung to was now in the grip of doubt.  Was it conducive to the existing style of the bike?  Did I have the skill and equipment to make it?  Did I even like it?

Fig 1: No, I don't think I do...

Whatever the case, I decided to work on other projects.  You’ve seen the watch (previous article, if you care to see it), now for something a bit more motorcyclic.

The Suzuki GS850G (which I have been known to drive and crash) has been running aftermarket 4-into-1 pipes with a Jardine glass pack ever since I cobbled together the cash to buy them.  The stock pipes were massive dual megaphones done up in aging chrome.  I liked them, but they sounded silly, like a whispering dragon.

Fig 2: A whispering dragon. (fssle bssle fssle)

The 4-into-1’s were loud, and the glass pack muffler was more of a glass pack and not so much of a muffler.  I loved it.  My wife…tolerated it.  Loud pipes only get louder on the passenger seat.
There was one problem: These screamin' new pipes didn’t provide enough back pressure to keep the exhaust gasses from scavenging excessively.
Scavenging?  What's the scavenging mean?  It means two things.  This is one of them:

Fig 3: Scavenging

According some dictionary, scavenging is also: to remove (burned gases) from the cylinder of an internal combustion engine after a working stroke.
I don't know what that means exactly, but in simple ideas (which is the only kind I have) I'll tell you my understanding of scavenging.  I might even be wrong, and I'd love for ya'll to tell me if I am.
Here goes: Scavenging (excessive scavenging that is) occurs when unburned fuel (i.e. gasoline vapors) is pulled out of the cylinder, through the exhaust valves and into the pipes.  The main reason this happens is due to the velocity of the exiting exhaust gasses.  The resulting sound is like the eruption of a small volcano, and if you’ve got really short pipes or an exotically tuned engine, you get a nice plume of fire coming out of your muffler (but if this is happening, I’m betting whole dollars you’re not running a muffler).
There are other factors that act on the scavenging effect too, like valve overlap (having both exhaust and intake valves open at the same time for a short duration of the engine’s cycle).  But in my case, the exhaust system seems to be the main culprit.

Note: If you kids at home want to know if  you have scavenging on your bike, have an adult fire up your engine, carefully let it warm, hit the throttle hard, and then let it off suddenly.  You will hear a series of pops and bangs if you have scavenging.  This is the unburned gas exploding in your pipes (don’t worry, it’s not dangerous, just inefficient)

Some scavenging is good, it pulls the old gasses out and forces fuel in.  But too much ruins your fuel economy (important at $4.50 a gallon) and results in loss of power (in most cases, but in my experience there are always exceptions with engines).
 What I needed to manage my scavenging issue was restriction, something to hold those gasses back, slow them down.
I turned to the only place we have left to find detailed information on things most folks don’t care about: The Internet.

There’s something known in the Harley community as ‘the washer baffle’.  It’s application is for drag pipes and addresses the same issues I have with my Suzuki.  There are lots of sites that tell you how it’s done, but here’s the one I found after about five seconds of searching:

I made some modifications to the design, because I’m foolish and think I know better than folks with far more experience than I.  The result is as follows:

 Fig 4: Ah...I got nothin...sorry guys.  Not much witty in this shot.

First things first, I stripped the 4-into-1's off my bike.  This is a great time to install some new muffler gaskets if you're getting a lot of popping exhaust noises from the front of your engine.  I had VHT coated these with manifold paint a couple years ago.  I learned from this experience that VHT manifold paint is pretty useless.

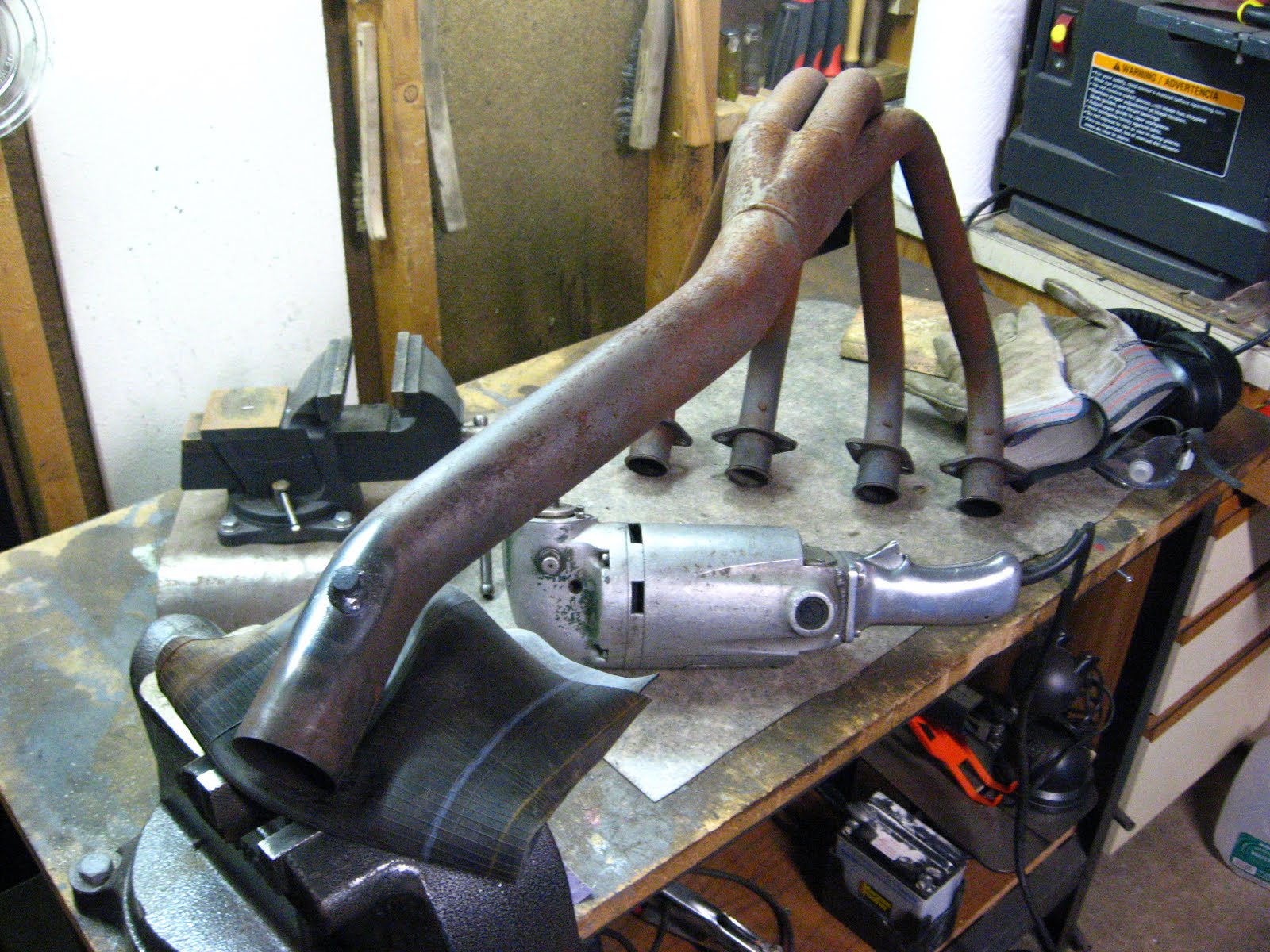

 Fig 5: My implements

I started by picking a place to drill my hole for the shaft of the baffle. (By the way folks, if you didn't at least look at the pictures of how this job is done, you're not going to understand much of what I'm about to say).  I decided to make my shaft end slotted, so that I could use a wrench and screwdriver to tune the bike while it was running.  Also, by cutting the slot parallel with the plane of the washer, I could have a visual indication of what position the baffle was in without being able to see it.  Important if you're going to strap a long, dark muffler to your pipes like I do on my Suzuki.  I picked a spot about four inches from the end of the pipe, on the bottom, so folks wouldn't bother me asking about the bolt on my muffler.  Turns out, the decision to put the hole four inches from the end was a huge mistake, but we'll get back to that.

My plan for the baffle was to have a boss coming off the pipe to bolt against, so I welded a stub of 1/2" carbon steel barstock onto my pipes.

Note: A lot of exhaust pipes are made of alloys; high chrome carbon steel, or stainless steel in some cases.  I'm no metallurgist, but I would not recommend dissimilar metal welds on an exhaust pipe.  The difference in thermal expansion between the bonded metals alone could be enough to give you trouble.  I know that my pipes are carbon steel (because they were cheap, and they rust profusely), so I had no fear welding to it.  But a basic rule is to know what you're doing before you start doing it.  Stick to that and you should be fine.

I beveled the bottom of the boss, then welded it to the pipes with a really ugly bead.  When I was done, it looked like this:

Fig 6: The Boss

 Fig 7: The Boss from a distance

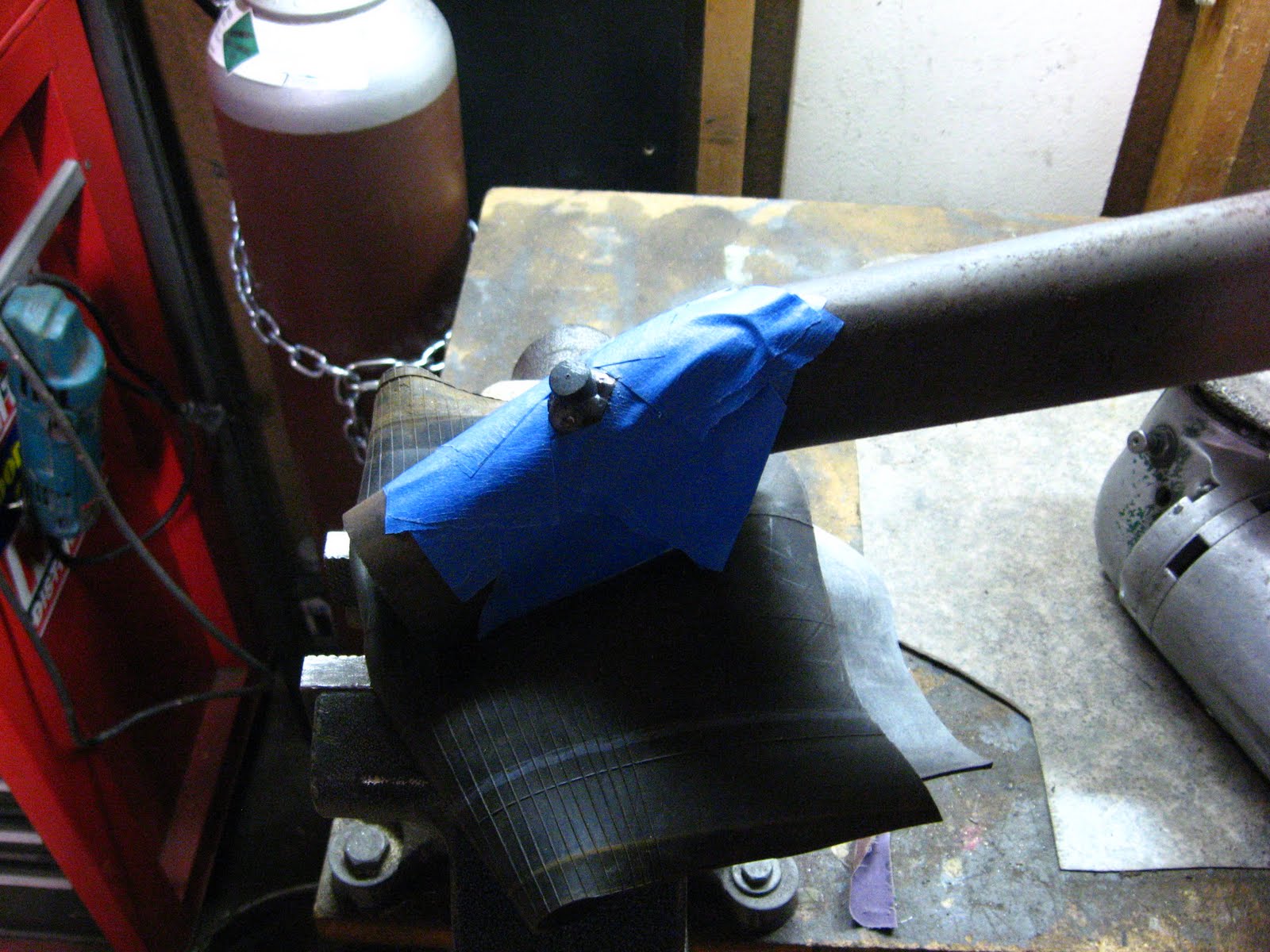

Next, I taped the surrounding metal off with two layers of blue painters tape.  I did this to protect the metal while I ground down that weld.  The blue tape is really no match for a grinding wheel spinning at thousands of RPM, but it gives you a warning.  I usually know when I'm hitting something I don't want to with a grinder, and the tape gives me an extra half a second to pull off when I goof up.

Fig 8: Ready for material removal

Fig 9: An old photo from the vault depicting Demoto grinding metal for a completely unrelated project.  It sure does capture the spirit of the moment though.

I don't recall the exact moment, but it was around this time that I began to see the folly of my ways.  Having the hole four inches back with a boss meant that putting the washer assembly into the pipe would be...impossible.  Basically, I could put the washer and shaft assembly into the pipe, but I couldn't stand it up straight to go through the boss.  I was in a pickle.  But in clear Demoto form, I pushed ahead with the faulty design and hoped I was going to get smart enough within the next hour to solve it.

Fig 10: The result, courtesy of blue tape, grinders, a file, and a drill bit.

The next bit I got into so much, I forgot to take pictures.  Suffice it to say, I took a washer, a smaller washer, and bolt, combined it with a MIG welder, files, a die set, and a makeshift lathe I cobbled together with a cheap power drill, a bench vise, and an angle grinder.  The result is displayed proudly below:

Fig 11: Victory

Feast your eyes folks.  You won't often see metal this pretty coming out of a shop as shoddy as mine.  Hidden as it now is, I am quite proud of this fabbed part.  Sadly, I had to shave a bit off the top of the washer in order to get it to fit inside the muffler due to the affore mentioned "four inch setback bungle".  It's in the pipe now, probably until Jesus comes back because try as I might, I can't get the thing to come out again.

Sadly for you, I have no picture of the finished article.  So I found one on the internet!

Fig 12: Demoto's baffle looks just like this one (coutesy of welderboy1276), except it doesn't look like a filthy metal turd.

I installed a nylon lock nut on the shaft, not an acorn nut as shown above on welderboy1276's noble effort, and I hope the nylon doesn't melt.  welderboy1276 doesn't have to worry about his acorn nut melting, because it's made of metal.  Also, it's probably laying on the road somewhere, because any bolt on a motorcycle not locked somehow tends to shake free eventually.
My adjustable baffle will now allow me to tune my exhaust pipe to a more tolerable level of scavenging, hopefully allowing me to put still more superbike pretty-boys to shame on the blacktop.

Oh yes, and one more thing.  You remember that inspiration I was lacking at the beginning of the article.  Well ladies and gentlement, I was standing in my garage a short time after finishing this project when I recieved an epiphany, a revelation, a vision of things to come...

...stay tuned folks.

March 21, 2011

Beyond Motorcycles

Greetings fellow folk.  Today I wish to make a departure from my usual fare.  Today we will not speak of tools, or motor-driven conveyances, or the innate awesomeness of fire.  Today I wish to spend a moment in the fast paced, razzle-dazzle world of fashion accessories.  Particularly, useless, out-dated fashion accessories.  To be precise, The Watch.

With the advent of cellular phones and their fantastic timekeeping ability, you see less and less wrists adorned with a watch.  It would seem that the watch has been made over as a phone and (ironically?) moved back into the pocket, where it first started its journey through human culture.

And while Tag Heuer must be pulling some sort of profit to have His Coolness, Brad Pitt model their watches for the unworthy world to see, most of us don’t spend more than $100 on timekeeping per fiscal year.  I know I didn’t.  I spent a little over twenty bucks, and got this:

Fig. 32: A watch on a Royal typewriter

To say I simply 'got' the watch for a little over twenty dollars is false.  I got the watch face (a cheap Mossimo wrist watch with a fake leather band) for $20.  I made the watch band over the course of two days during my recent period of internet silence known as 'vacation'.  I'll get into the materials and methods of construction later, but needless to say, the watch cost me more Time than it did Money, which is perhaps appropriate.

Detail 1

I made the main wrist strap out of two layers of leather.  The top is black suede, about 1 millimeter thick.  It looks pretty, but has a lot of stretch in it, so would be unsuitable for the band.  I fixed this issue by making the watch out of two layers.  The bottom is good, strong leather, about 2 millimeters thick, but ugly tan in color.  I punched small holes around the pereimeter of both pieces and stitched it together with synthetic sinew.  I like synthetic sinew because it's much easier to work with, plus, you can melt your knots with a match to keep them from ever coming undone.  The down side is that synthetic sinew will eventually lose it's leathery pigment and turn nylon white (because it's really white nylon, folks!).
Having two layers of leather meant I could do some pretty cool effects when attaching the face straps.  As you can see in Detail 1, the strap dives under the leather and is stitched through all the layers using a leather-workers awl.  I tried doing as much of this project as I could on my old Sears Kenmore sewing machine, but at around three ply of leather, the old girl gives a groan and refuses to go any further.

Detail 2

Eventually I decided to stop being creative and become simply ridiculous.  The second face strap is asymmetrical to it's brother, who I mentioned earlier.  It starts wide and tapers down to a chamfered end.  I then adorned it with the back end of two handgun cartridges (9mm and .38 Special, both +P so I could have them in silver).  I cut both of the cartridges off in my vice and filed them down smooth.  I had previously removed the primers and so simply threaded them on as beads through the primer pocket.  The face strap was punched with holes corresponding the the cartidge size, so they would be countersunk into the leather.

Detail 3

Finding a suitable buckle for a watch like this is nigh impossible, so I went super-unconventional and secured it to my wrist using a knurled nut I found in my grandpa's collection.  In order to mate the metal to the leather, I had to fire up my brain and, shortly thereafter, the MIG welder.

Detail 4

Detail four doesn't show you what's going on between the leather layers, but essentially, there is a 1.25" long strip of 18 gauge steel, about 0.375" wide, and rounded on all corners so it won't slice through.  I drilled five equally spaced holes in this piece of metal, and welded a section of threaded metal (fancy talk for a cut off bolt) flush into the center hole from the back.  I punched corresponding holes into the leather as needed and then sewed the metal between the leather strap layers with the bolt protruding as shown.  You can see the knurled nut in the upper, left-hand corner.  It really is a very nice looking piece of hardware.

Detail 5

In the end, I got myself a post-apocalyptic timepiece that I am proud to wear.  If I could change anything, I'd put a nicer face on it, waterproof, with an automatic movement so I'd never need batteries.  But honestly, who has that much to spend on a watch?

Demoto would like to thank his dad for inspiring him in this undertaking with tales of the massive Russian submarine watch.  You may not have brought one back from the Ukraine, but I might have made one to rival it's coolness.

March 1, 2011

Engine In

As I hinted at in my previous post, the Steel Steed has come back home.  I took a few minutes and slapped the frame together from it's disassembled state.  Looking at it's lines and angles, I was once again reminded of how far I had come, how much road I still had to travel, and how much I liked this bike.

Fig. 13: The artistic grace of the minimal.  Plus, check out my new (to me) tool box!

For me, it's usually not a good practice to let such moments of emotional commitment go by the wayside, so I rode the wave of elation and dropped the engine into the frame.  Believe me when I say that it took every drop of that wave to get the job done.

 Fig. 14: Intimidation

For those of you fortunate enough to have avoided putting a four cylinder in-line back into a double downtube frame, congratulations.  For those of you who have performed this task, then you know that it only goes in one way, and then only when you have removed, say, the breather box cover, and maybe the oil filter casing too.  And you know what, better drop the points cover too, for good measure.

Fig. 15: Halfway there (maybe)

My engine was no exception, and I was doing this by myself, with no buddys, jacks, or lift assists.  When I had at last finished, I knew there were only two remedies for the pain I was in.  The first were near fatal doses of ibuprofin, the second was to put the tank and seat on the bike and....just....look at it.

Fig. 16: Agony

Fig. 17: Potential

Fig. 18: Ecstasy
(not the drug, kids)

To say I am happy with where this bike is going would be an understatement.

The job did bring a few things to the table however.  For one, make sure you label all of your bolts and what-not very well.  There is no telling when you will put things back, and digging through the rubble of three seperate bikes with only a vague notion of what you're looking for can be un-nerving.

Fig. 19: One of these bolts is the right one for the job...

For two, I will be using the passenger peg mounts as my rearset location on the frame, so the current pegs are not needed.  However, those unwanted pegs are attached to the frame via the lower engine stud bolt.  Once the pegs are removed, that bolt is going to be a good two inches too long.  I am going to have to shorten that stud and re-thread it for the engine mount nut.  Not a big job, but fine thread metric dies can be hard to come by, so I'll either have to do it with an Standard die and swap the nut, or do some searching.  We'll see.  Enjoy the pictures lads and jennys.

Fig. 20: The Steel Steed

Fig. 21: Cannon

Fig. 22: The Steel Steed AND Cannon
(It was cold out that day)

February 17, 2011

Moto Show Madness

Last weekend, me and the crew (minus Rob) hit the International Motorcycle Show that was temporarily taking up residence in the Rosemont Convention Center.

Fig 29: The Crew (minus Rob)

Fig 30: The Donald E. Stephens (nee Rosemont) Convention Center

While my dream show would have been the custom show at the McCormick on the previous weekend, life did not allow me to go.  However, for a manufactuerer show, the IMS had a good showing of custom bikes, though to be honest, some were just bolt-on wonders with trick paint jobs.  There were several bikes that caught my eye.  One was a standard looking overchop (the gross fat wheel, suicide rake folks, etc.) but the builder had used a snowmobile engine with a CV transmission (i.e. no shifting).  It was essentially a giant scooter.  In addition, the builder had the brake off of the primary gear coming out of the engine, putting spool wheels on both the front and rear.  Not sure how I feel about the thing safety-wise, but if you want to die in style, but can't seem to get that while manual transmission thing down, count this bike as your ride (sorry, no pictures dudes, I'm just getting used to the blog culture thing where you have to document every aspect of your life...).

The second was a positively AMAZNG Honda CB-550 done by Cook Customs and titled simply "Rambler".

I'll let the photos speak.

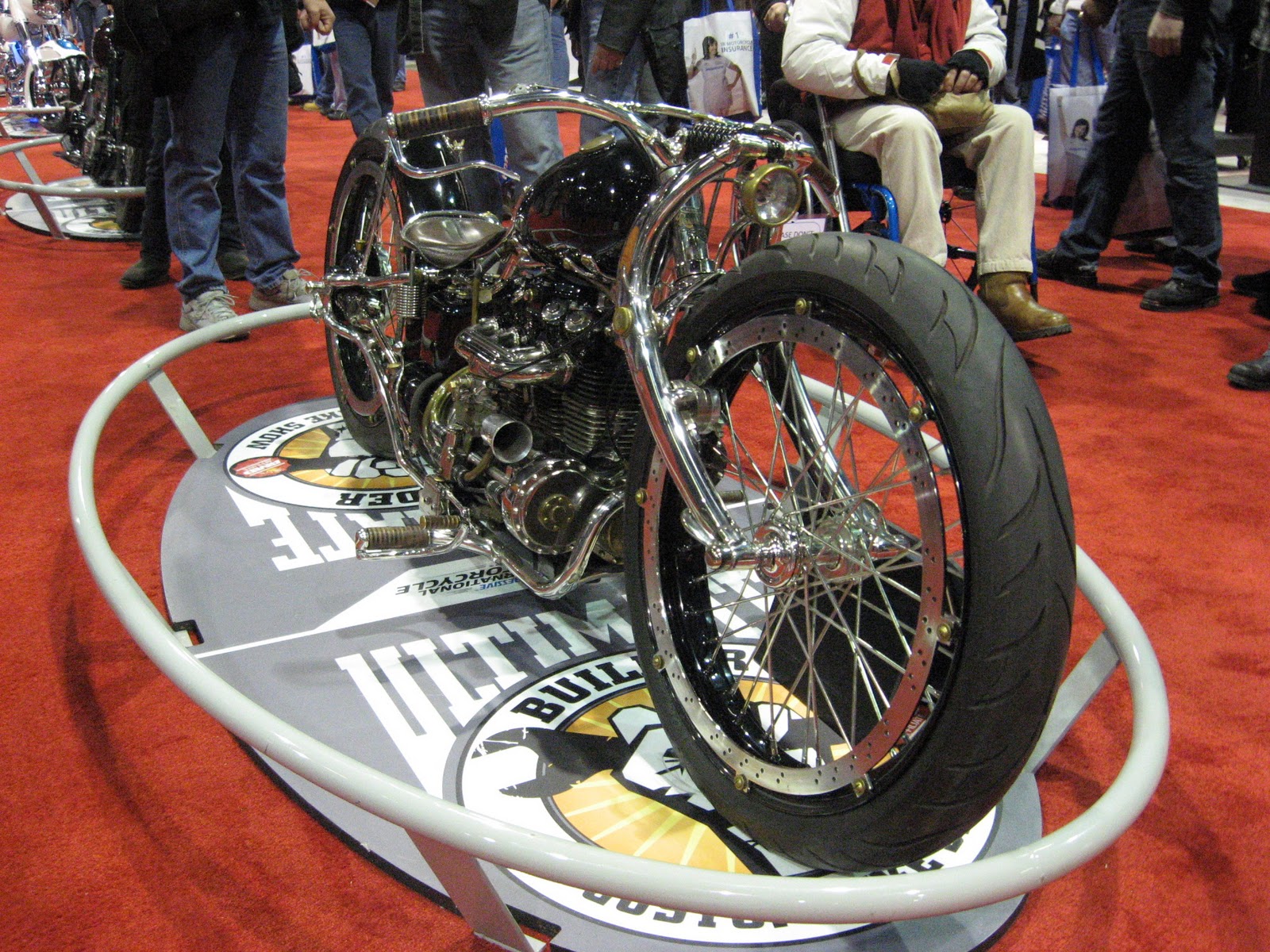

 Fig 31: Interesting...four banger inline.  Custom springer front end.  Bar end cantrols, stacked leather grips, perimiter discs on front and rear wheels.  I could go on and on about the details in this ride...
